SX SM LC/UPC-FC/UPC Patch Cord

Home Products Fiber Optic Patch Cord Singlemode patch cordSX SM LC/UPC-FC/UPC Patch Cord

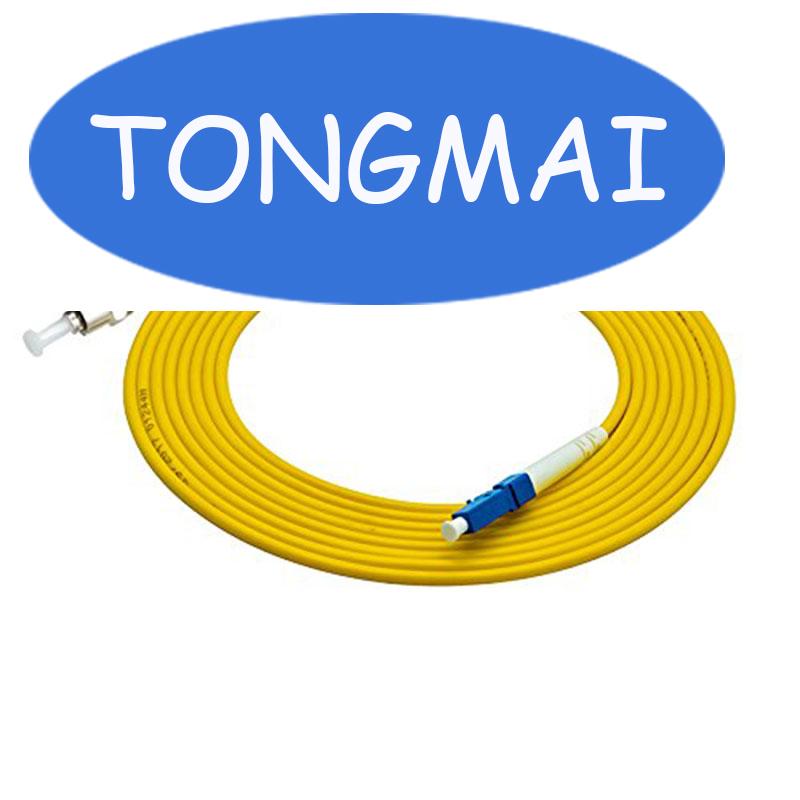

SX SM LC/UPC-FC/UPC Patch Cord

  • Category:Singlemode patch cord
  • Inquiry Send Email

    Description

    SX SM LC/UPC-FC/UPC Patch Cord


    Fiber Optic Patch Cord, also named Fiber Optic Jumper or Fiber Optic Patch Cable, is one of the most frequently used components in fiber optic network, and is used to linking the equipments and components in fiber optic network.

    Generally, fiber optic patch cord is divided into single mode patch cord and multi mode patch cord according to the mode, and is divided into FC, SC, ST, LC patch cord according to the connector on it.

    Our fiber patch cords suited for equipment jumper cable, cable, cross connects and word area connections. All patch cords are 100%factory tested to ensure performance to reach the standards.

    Features:

    1, Lower Insertion Loss

    2, High Return Loss

    3, Excellent Repeatability

    4, Environmentally Stable

    Applications:

    1, Telecom and Datacom

    2, Storage Network

    3, CATV & Multimedia Application

    4, Systems Integration for Long Haul, Metro and Access Network

    5, Fiber to the Indoor (FTTX) Test

    Specifications:

    Connector Type

    LC to FC

    Polish Type

    UPC to UPC

    Fiber Mode

    9/125μm

    Wavelength

    1310/1550nm

    Insertion Loss

    ≤0.3dB

    Return Loss

    ≥50dB

    Fiber Grade

    G.652.D

    Minimum Bend Radius

    30mm

    Attenuation at 1310 nm

    0.36 dB/km

    Attenuation at 1550 nm

    0.22 dB/km

    Fiber Count

    Simplex

    Cable Diameter

    0.9mm/2.0mm/3.0mm

    Cable Jacket

    PVC

    Polarity

    A(Tx) to B(Rx)

    Operating Temperature

    -20~80°C

    Storage Temperature

    -40~80°C
