SC-SC Single mode simplex fiber optic patch cord

Home Products Fiber Optic Patch Cord Singlemode patch cordSC-SC Single mode simplex fiber optic pa

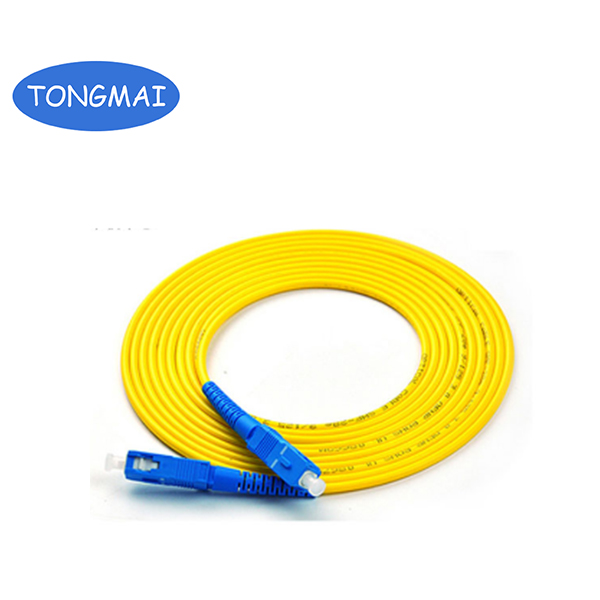

SC-SC Single mode simplex fiber optic patch cord

  • Product Item:SC-SC
  • Cable sheath material:PVC/LSZH
  • Ferrule and face:UPC/APC/PC
  • Length:3 meters
  • Return loss:≤0.3DB
  • Category:Singlemode patch cord
  • Inquiry Send Email

    Description

    SC-SC 9/125 SM Simplex PVC Fiber Optic Patch Cord


    Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.


    Key Features:

    1) Low Insertion loss

    2) Low PDL

    3) Compact Design

    4) Good channel-to-channel uniformity

    5) Wide Operating Wavelength: 1260-1650nm

    6) Wide Operating Temperature: -40°C - 85°C

    7) High Reliability and Stability



    Application :


    1) FTTX Systems

    2) PON Networks

    3) CATV Links

    4) Optical Signal Distribution

    5) Local Areal Networks (LAN)

    6) Fiber Communication Systems



    Ordering Options:

    1) Connector type: FC, SC, LC, ST
    2) Ferrule End-face: PC, UPC, APC
    3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or           62.5/125um)
    4) Cable Quantity: Simplex, Duplex
    5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
    6) Cable Length: 1, 2, 3 meter or customized

    7)Cable Type: PVC, LSZH.


    Specification:

    Model
    SM
    SM MM
    Polish UPC APC PC
    Insertion loss

    Typical≤0.2dB

     Maximum ≤0.3dB

    Typical≤0.2dB

    Maximum≤0.3dB

    ≤0.25dB
    Return Loss ≥50dB
    ≥60dB
    ≥35dB
    Interchangeability ≤0.2dB


    Repeatability
    ≤0.1dB


    Durability ≤0.2dB(1000 times mating)


    Tensile Strengh >10kg


    Temperature ≤0.2dB(-40+85 sustain 100 hours)


    Humidity ≤0.2dB(+25+65 93 R.H.100 hours)
