SX SM SC/UPC-LC/UPC Patch Cord

Home Products Fiber Optic Patch Cord Singlemode patch cordSX SM SC/UPC-LC/UPC Patch Cord

SX SM SC/UPC-LC/UPC Patch Cord

  • Product Item:SX SM SC/UPC-LC/UPC Patch Cord
  • Category:Singlemode patch cord
  • Inquiry Send Email

    Description

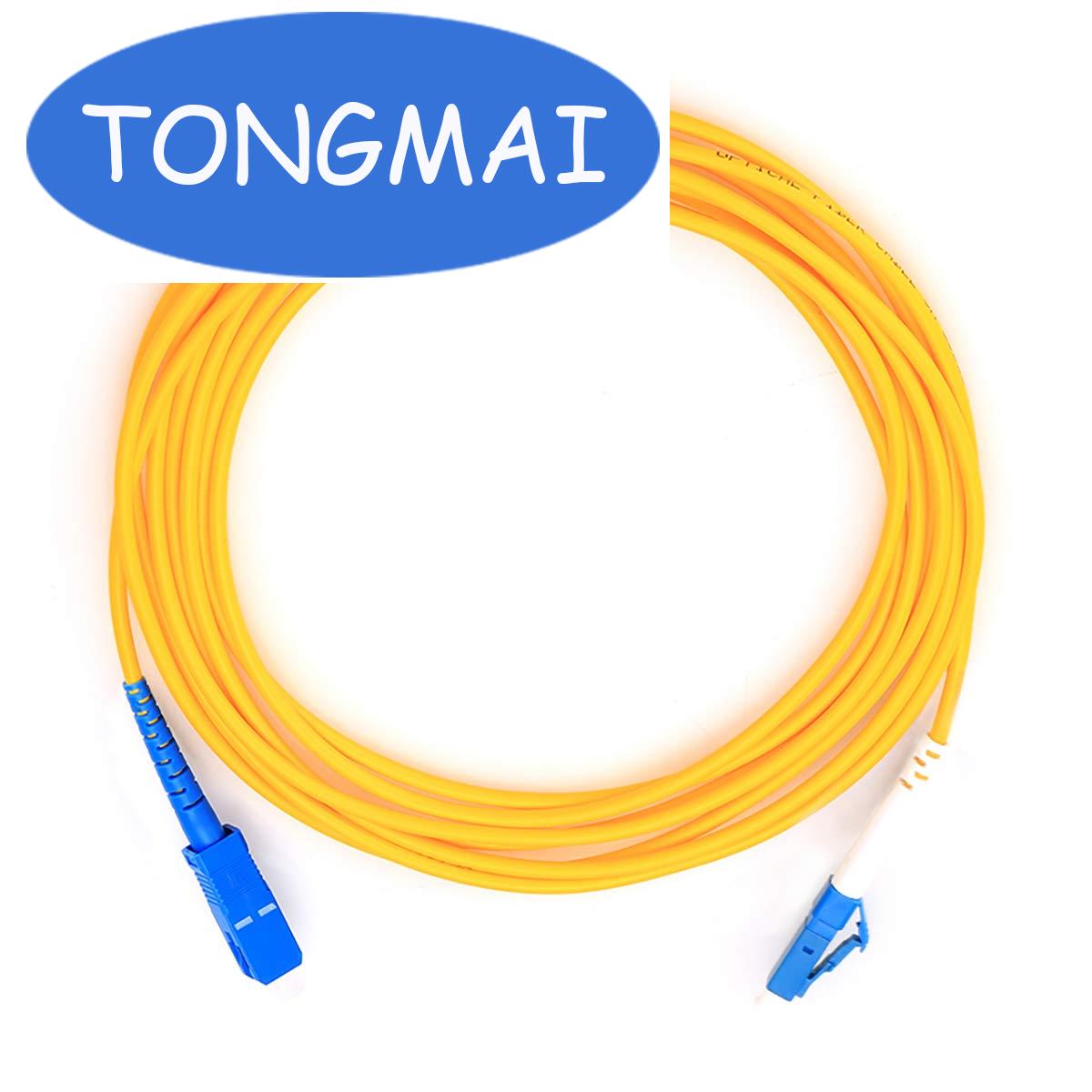

    SX SM SC/UPC-LC/UPC Patch Cord

    This cable features single mode and 0.9/2.0/3.0mm (optional) outside diameter. LC to SC connector. Specifically designed for Ethernet, multimedia or other communication application

    Features:
    Low insertion loss,high return loss

    High precision alignment, easy for operation
    Good stability
    Good repeatability and exchangeability

    Applications:
    1) FTTH, LAN, PON & Optical CATV, Local ring net
    2) Optical fiber communication system
    3) Optical fiber test equipment
    4) Industry and military application

    Specifications:

    Connector

    LC to SC

    Jacket OD

    0.9/2.0/3.0 mm

    Fiber Mode

    9/125μm

    Jacket Color

    Yellow

    Polish

    UPC to APC

    Wavelength

    1310/1550nm

    Fiber Type

    Duplex

    Jacket Material

    PVC(OFNR), LSZH, OFNP

    Insertion loss

    ≤0.3dB

    Interchangeability

    ≤0.2dB

    Return loss

    ≥50dB

    Vibration

    ≤0.2dB

    Operating temperature

    -40~75°C

    Storage temperature

    -45~85°C

    Polarity

    A(Tx) to B(Rx)

    Fiber Grade

    G652A,G652D
