Description
Product Description
The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small volume, wide operating wavelength range, high reliability, good uniformity of spectrophotometer and so on. For passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and to achieve optical signal shunt. The 1xN and 2xN splitters evenly divide the optical signal into multiple outlets evenly from a single or dual inlet, or vice versa, to import multiple optical signals into a single or two root fiber.
Features
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability
|
Technical Parameters |
Specification(Not Including Connector Loss) |
||||||||
|
Operating Wavelength(Nm) |
1260-1650 |
||||||||
|
Types |
1*4 |
1*8 |
1*16 |
1*32 |
1*64 |
2*4 |
2*8 |
2*16 |
2*32 |
|
Insertion Loss(DB)-Typical |
6.8 |
10.0 |
13.0 |
16.0 |
19.5 |
|
|
|
|
|
Insertion Loss(DB)-Maximum(P/S) |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
7.6 |
11.0 |
14.5 |
17.5 |
|
Uniformity(DB) |
≤0.6 |
≤0.8 |
≤1.2 |
≤1.5 |
≤2.5 |
≤1.5ā |
≤1.5 |
≤2.0 |
≤2.5 |
|
Polarization Loss(DB) |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.2 |
≤0.4 |
≤0.4 |
≤0.4 |
|
Return Loss(DB) |
|
≥50 |
|
|
Directivity (DB) |
|
|
≥50 |
|
|
Operating Temp(℃) |
|
-40~+85 |
|
|
Operating Temp(℃) |
|
|
-40~+85 |
|
Application
Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks (PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

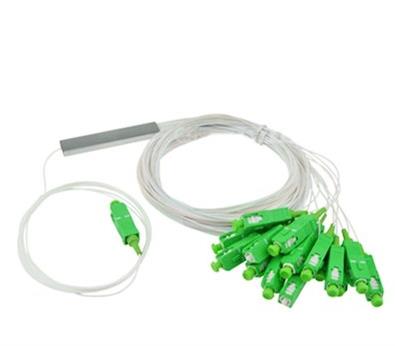

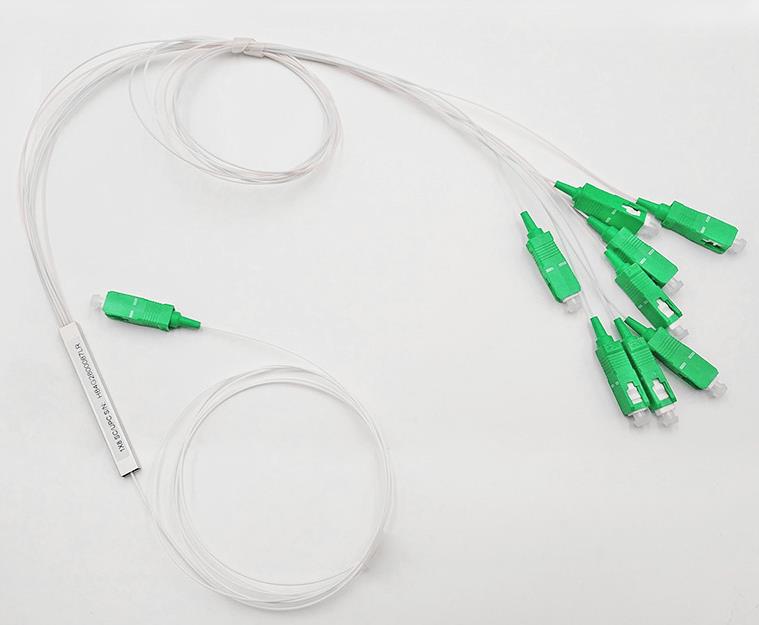

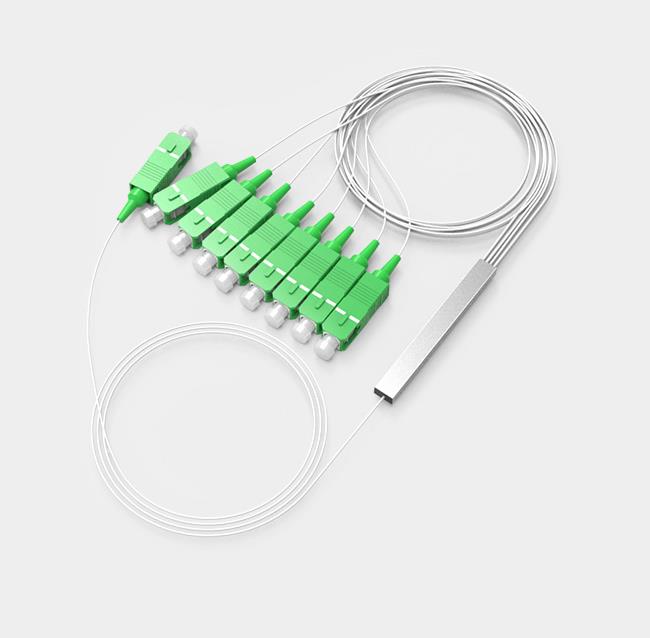

Product Image Detail:
