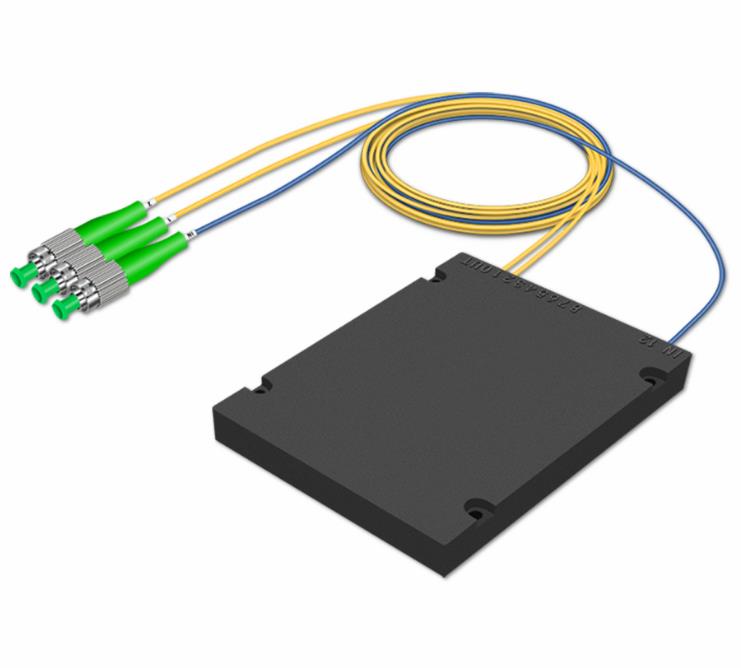

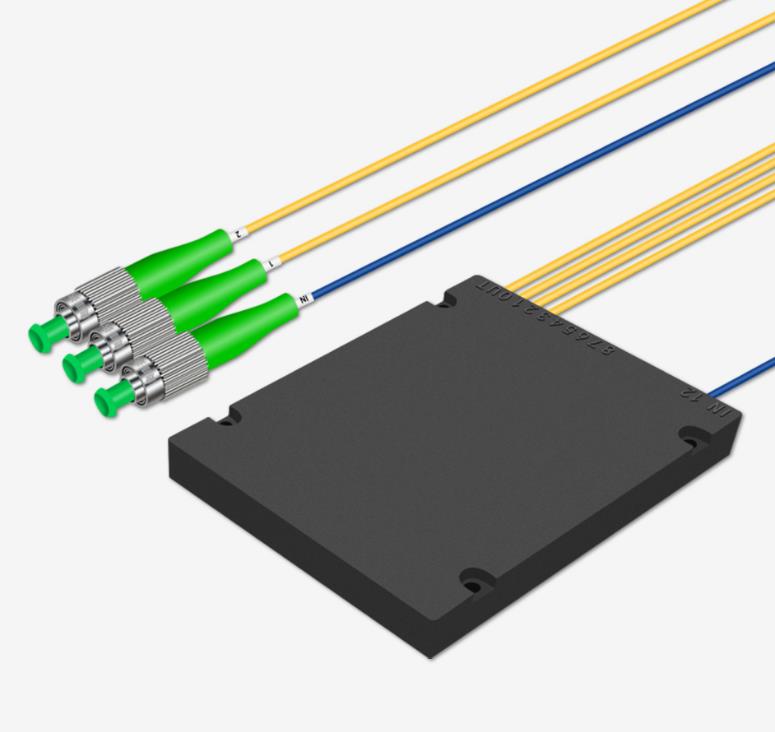

1 To 2 Box FC/ APC PLC Splitter

Description

General Description:
The Planar light-wave circuit (PLC) splitter is an optical power management device fabricated by using silica optical waveguide technology. It features a compact size, high reliability and wide operating wavelength range with good channel-to-channel uniformity. These PLC units are widely used in PON networks for optical signal power splitting.

1. Description
1x8 PLC Splitter Box Type, SM fiber, OD:2.0mm or 3.0m pigtail, 1m length, With SC/APC connector.

2. Features
* FTTH
* Monitoring
* CATV System
* Network Protection
* Access/PON Distribution

3. Insertion Loss
- Test Wavelength: 1310-1550 nm
- Required Value: P Grade
- Test can be performed on any channel

4. Return Loss
- Test Wavelength: 1310-1550 nm
- Required Value: >55dB
- Test can be performed on any channel

5. Directivity
- Test wavelength: 1310-1550 nm
- Required Value: >55 dB

6.On Dependent Loss-PDL
- Test Wavelength: 1310-1550 nm
- Required Value: < 0.2 dB

7. Specification

ITEM	1X2	1X4	1X8	1X16	1X32	1X64	2X2	2X4	2X8	2X16	2X32
Operating Wavelength(Nm)	1260~1650
Insertion Loss (DB) Max.	≤4.6	≤7.5	≤11.0	≤14.0	≤17.0	≤21.0	≤4.5	≤8.0	≤11.7	≤14.7	≤17.9
Loss Uniformity (DB) Max.	≤0.6	≤0.6	≤0.8	≤1.2	≤1.5	≤1.8	≤0.8	≤1.0	≤1.0	≤1.5	≤2.0
PDL (DB) Max.	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss (DB)	UPC≥50dB ; APC ≥ 55dB
Directivity (DB)	≥55
Fiber Length (M)	1.2±0.1, (Other Requirements Can Be Provide)
Fiber Type	Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature℃	-40~+85

Advantage:
1. The new ABS plastic synthetic resin shell is impact resistant, durable and durable.
2. New environmentally friendly LSZH skin, strong tensile strength, not easy to break, durable and durable.
3. High-quality ceramic ferrule with good uniformity of splitting, which can distribute the fiber signal evenly to the users.
