Unitube Light-armored Cable GYXTW

Home Products Outdoor fiber optic cable GYXTWUnitube Light-armored Cable GYXTW

Unitube Light-armored Cable GYXTW

  • Product Item:GYXTW
  • Application:Aerial,Duct
  • Core:1-12
  • Fiber Type G652D
  • Jacket:PE
  • Category:GYXTW
  • Inquiry Send Email

    Description

    Cable Model: GYXTW

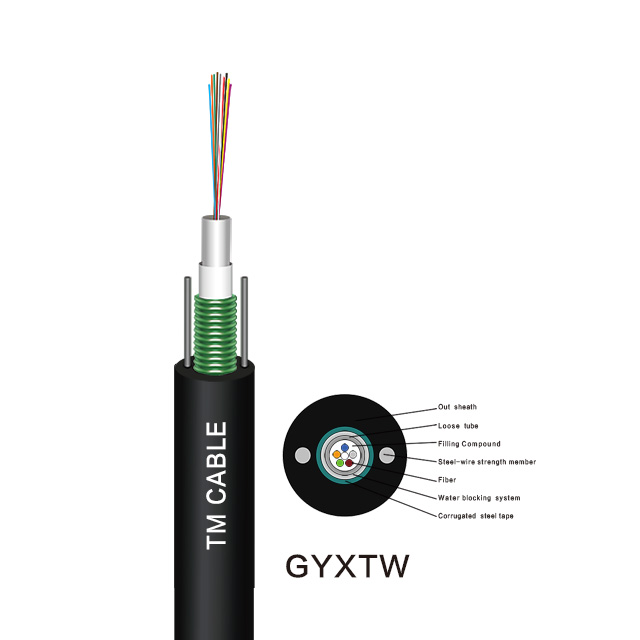

    The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

    Applications:

    Long distance and local area network(LAN) communication.
    Aerial & conduit/duct application.

    Features:

    Uni-tube gel-filled construction for superior fiber protection.
    Double wire as strain member provides excellent strain performance.
    Good mechanical and temperature resistant performance.
    Crush resistance and flexibility.
    Light weight and small diameter, easy to installation and operation.

    Cable Parametres:

    Number of fiber 1~12core
    Loose tube Material PBT
    Diameter 2.0(outer/inner)
    Tube-filling Tube filling compound
    Steel wire Size 0.7-1.0mm
    Number 2
    Outer sheath Material PE,HDPE,LDPE
    Diameter 1.8±0.2mm


    Fiber Count 2/4/6/8 10/12
    Outer Diameter(mm) 8.3 9.0
    Nominal weight(kg/km) 66 82
    Max.tensile strength(N) Short-term 1500
    Long-term 1200
    Min bending radius Dynamic 20D
    Static 10D
