Stranded Loose Tube Non-armored Fiber Optic Cable GY(F)XTY

Home Products Outdoor fiber optic cable GYXTYStranded Loose Tube Non-armored Fiber Op

Stranded Loose Tube Non-armored Fiber Optic Cable GY(F)XTY

  • Product Item:GYXTY
  • Application:Aerial,Duct
  • Core:1-12
  • Fiber Type G652D
  • Jacket:PE
  • Category:GYXTY
  • Inquiry Send Email

    Description

    Cable Model: GYXTY / GYFXTY

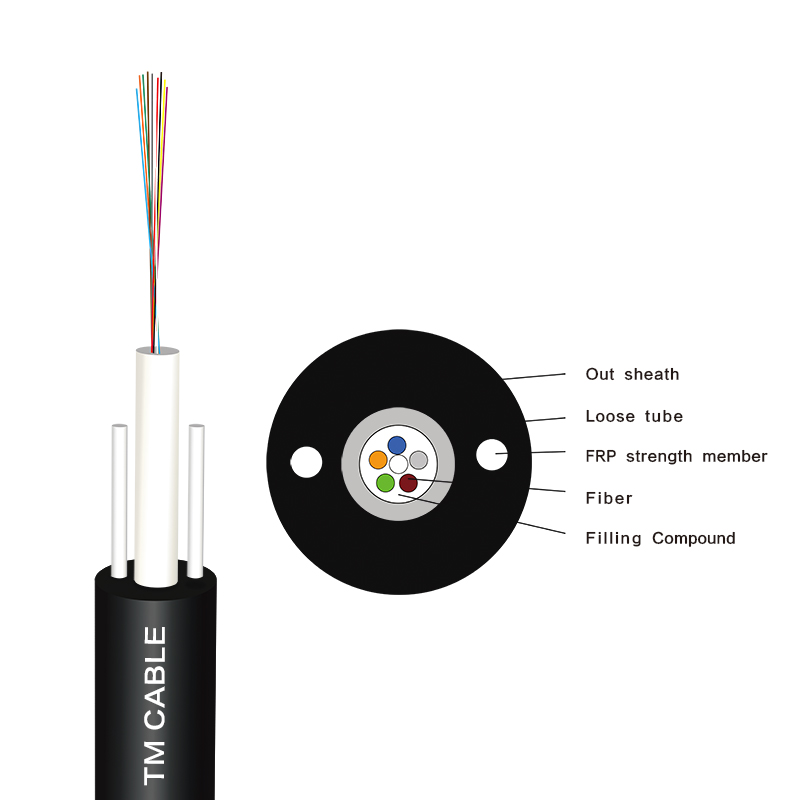

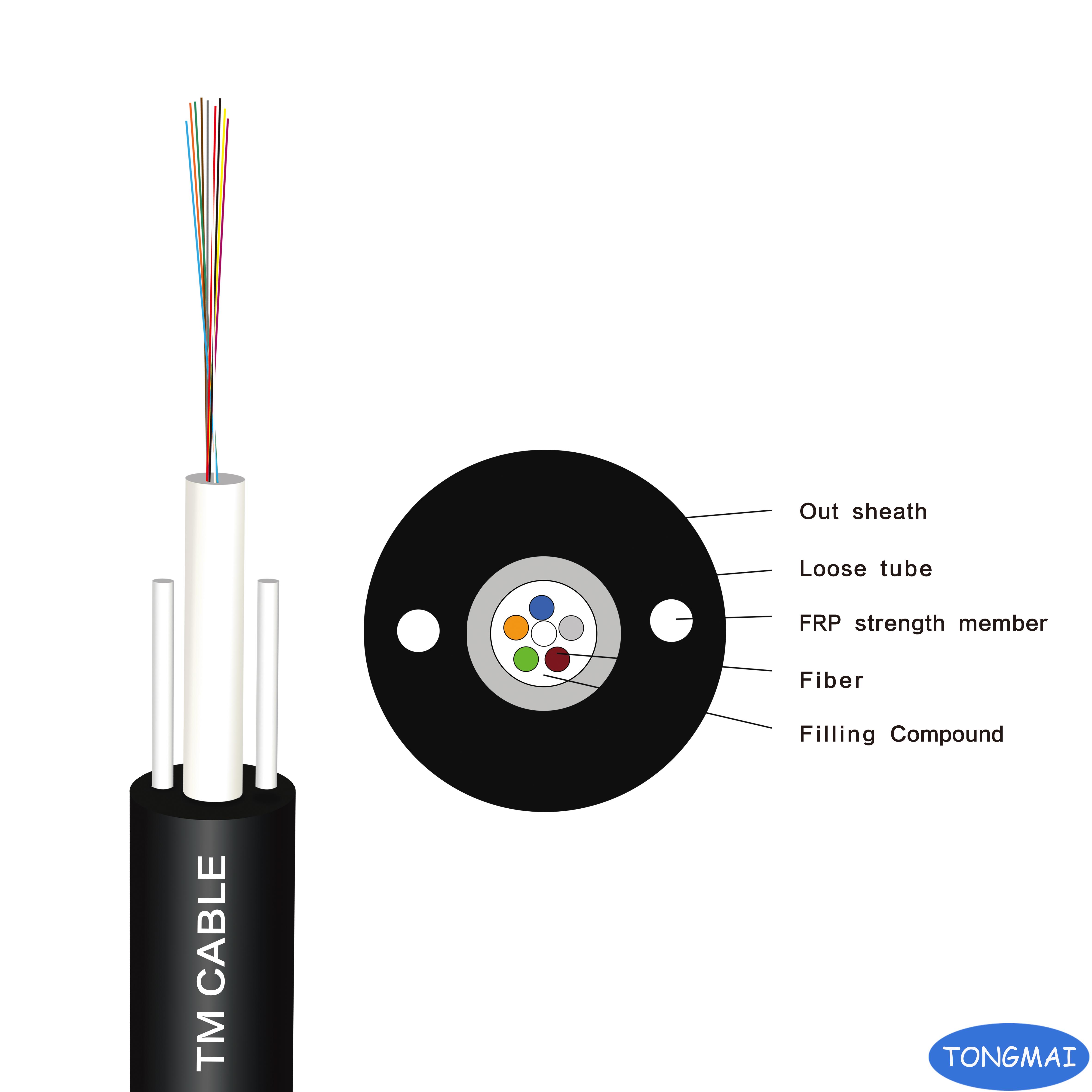

    GYXTY: 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with polyethylene (PE) sheath.


    Applications: Aerial,Duct

    Features:

    Good mechanical and temperature resistant performance.
    Uni-tube gel-filled construction for superior fiber protection.
    Two parallel steel wires ensure tensile strength.
    PE sheath protects cable from ultraviolet radiation.
    Light weight and small diameter, easy to installation and operation.

    Cable Parametres:

    Fiber Count Cable Diameter(mm) Cable Weight(kg/km) Tensile strength(N) Crush Resistance Long/short term(N/100mm) Bending Radius Stactic/Dynamic(mm)
    2-12 8.0 62 600/1500 300/1000 10D/20D
