Stranded Aluminum Tape Loose Tube Armored Cable GYTA

Home Products Outdoor fiber optic cable GYTAStranded Aluminum Tape Loose Tube Armore

Stranded Aluminum Tape Loose Tube Armored Cable GYTA

  • Product Item:GYTA
  • Application:Aerial,Duct
  • Core:2-144
  • Fiber Type G652D
  • Jacket:PE
  • Category:GYTA
  • Inquiry Send Email

    Description


    Cable Model: GYTA

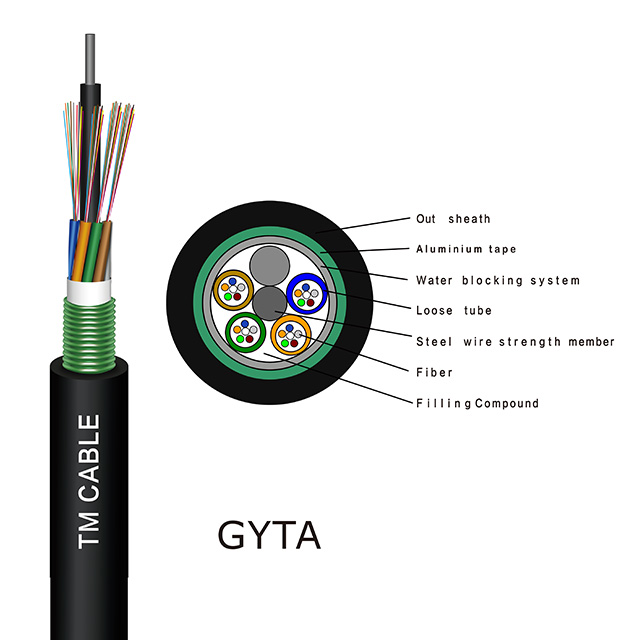

    The fibers, single mode or multi mode , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Aluminum tape, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The Aluminum tape is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.


    Applications:

    Long distance and local area network (LAN) communication.
    Aerial & conduit / duct application.


    Temperature Range: -40℃~+70℃


    Features:

    Good performance under mechanical stress.

    Loose tube gel-filled construction for superior fiber protection.

    Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial moisture-proof but also reinforces the crush resistance of fiber optical cable.

    UV and waterproof design.


    Cable Parametres:


    Fiber Count 2~144core
    Moisture Barrier Water blocking system
    Central strength member Material Steel wire/FRP/FRP with PE cover
    size 1.5mm~2.0mm
    Loose tube material PBT
    diameter 2.2(outer/inner)
    Tube-filling Tube filling compound
    Armoring Material Aluminum tape
    Outer sheath material PE,HDPE
    diameter 1.70±0.2mm


    Inquiry Us
