Description

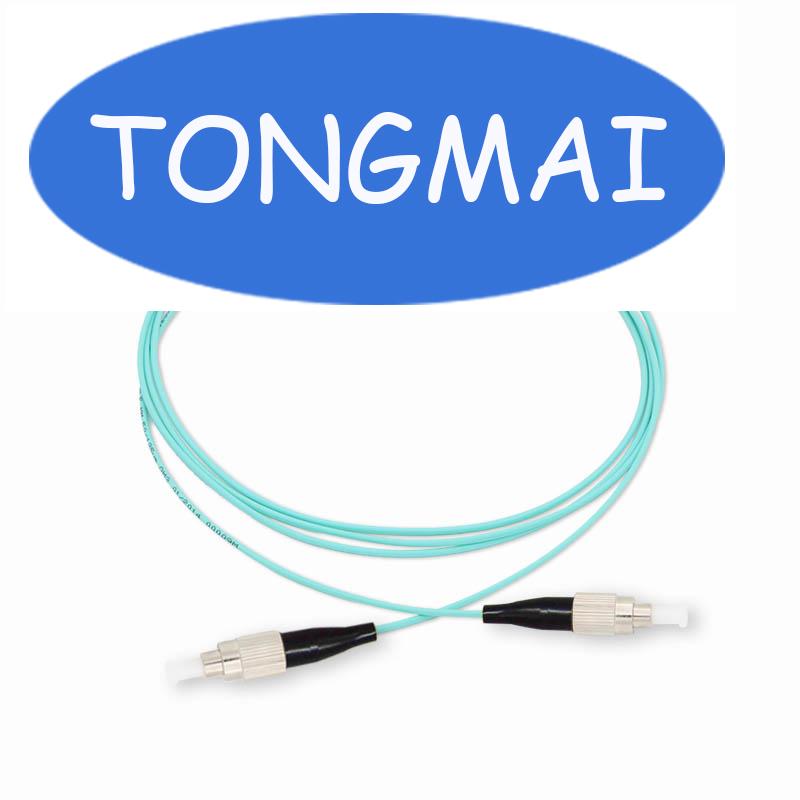

SX OM3 62.5/125 FC/UPC-FC/UPC Fiber Optic Patch Cord
Application
Gigabit Ethernet
Active device termination
Telecommunication networks
Video
Multimedia
Premise installations
Local area networks
FTTH and FTTX applications
CATV
Feature
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Specification
|
Mode |
SM |
MM |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
|
Interchangeability |
≤0.2dB |
||
|
Durability |
≤0.2dB (1000 times) |
||
|
Repeatability |
≤0.1dB |
||
|
Vibration |
≤0.2dB (550Hz 1.5mm) |
||
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
|
Apex Offset |
0μm ~ 50μm |
||
|
Radius of Curvature |
7mm ~ 25mm |
||
