Description

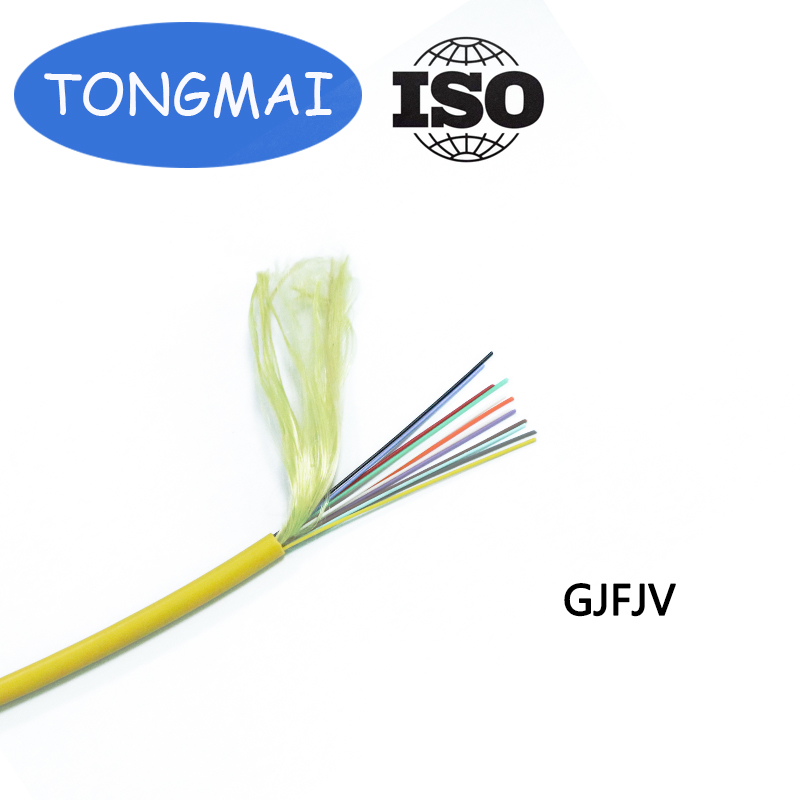

Round Tight Buffered Distribution Indoor Fiber Optic Cable
Cable Type : GJFJV
Structure Diagram :
Optical Fiber Type : Single mode / Multimode
Description :
High strength Kevlar yarn member. High quality tight buffered with round construction. Then extruded with a PVC or LSZH jacket.
Application :
As building to building connecting cable, as pigtails movable connectors and patch cords for communication equipment.
Temperature Range : -40℃~+60℃
Characteristics:
1. Good mechanical and environmental characteristics.
2. Flame retardant characteristics meet the requirements of relevant standards.
3. The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards.
4. Soft, flexible and easy to stripping, splicing and cabling.
Technical Parameters :
|
Fiber Count |
4 |
6 |
8 |
12 |
16 |
24 |
48 |
|
|
Outer Diameter (mm) |
4.8±0.2 |
5.2±0.2 |
6.2±0.2 |
6.8±0.2 |
7.4±0.4 |
8.2±0.4 |
12.5±0.4 |
|
|
Normal Weight (kg/km) |
19 |
23 |
29 |
38 |
48 |
60 |
128 |
|
|
Max. Tensile Strength (N) |
Short-term |
90 |
110 |
160 |
200 |
220 |
240 |
520 |
|
Long-term |
270 |
330 |
480 |
600 |
660 |
720 |
1200 |
|
|
Min. Bending Radius |
Dynamic |
20D |
||||||
|
Static |
10D |
|||||||
|
Max. Crush Resistance (N/100mm²) |
1000 |
|||||||
