Description

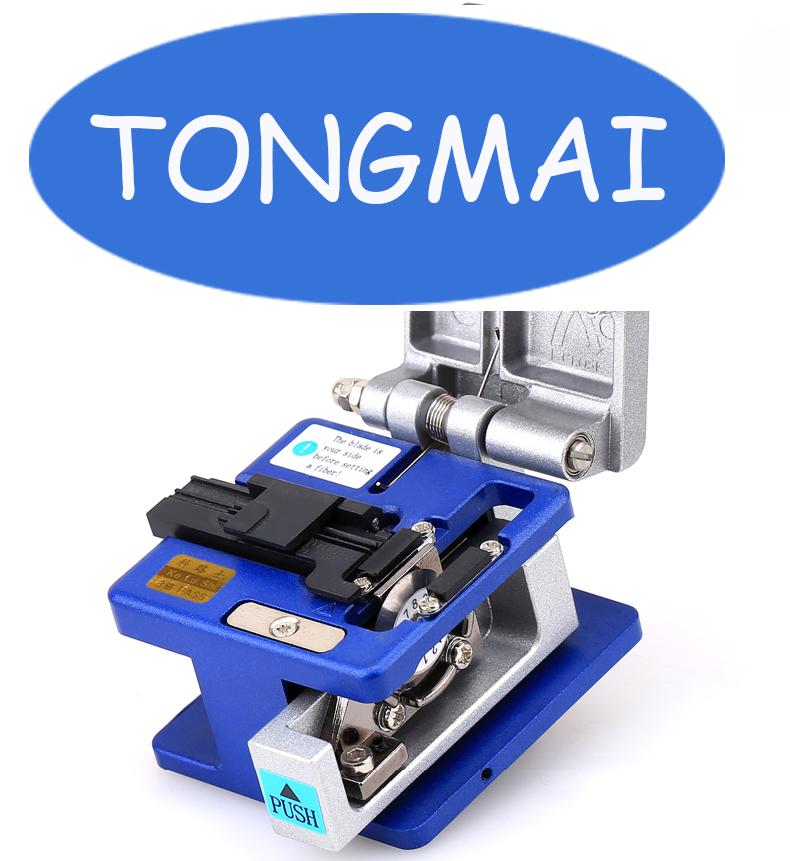

fiber core cutter optical cleaver
Overview:
FC-6S high-precision fiber-optic cutting knives are used for precision cutting single-core fiber, sheathed fiber optic cable, FTTH fiber-to-the-home. This cutting blade is made of aluminum alloy. The hardness is high. It is suitable for 250μm.
Covered fiber is also suitable for 900μm covered fiber. The quality of the black rail plus tool holder is used, and the pressure pad blade is made of digital lathe to ensure the cutting effect and stability.
Features:
Small size, light weight, convenient assembly and disassembly, ultra-high precision tungsten steel blade, automatic tool return function, easy operation, simple and convenient, accurate cutting, high efficiency, long service life, sustainable cutting more than 40,000 times, bottom anti-skid design, After 80s welding machine test, the product cutting angle <0.5 degrees, there are 2 inner 6 corners, one waterproof canvas bag
Function:
Ultrafine grain tungsten steel is used as raw material and produced by processing. The cutting blade can be rotated by 12-faced blades. The cutting life of each position is more than 3000 times, the automatic returning knife, the cutting angle is smaller, the cutting fiber is more, no special skill is needed, and the use is stable.
Application Range
Telecom, CATV Engineering and Maintenance; Integrated wiring construction and maintenance; Optical device production and research; Other fiber engineering.
Products Display:
All metal
Ultra-hard aluminum alloy material
Fully automatic knife metal cutter
Tungsten steel section, broken core in one time, neatly cut
Long service life, sustainable cutting more than 30,000 times
Suitable for single core fiber, FTTH drop cable
The bottom prevents sliding design, easy to use, user-friendly
Detailed Description Parameters Of The Product
|
Fiber core diameter |
125μm |
|
Applicable fiber core number |
Single core |
|
Fiber cutting length |
9~16mm 10~16mm |
|
Size |
63x76x63mm |
|
Weight |
380g |
The Details Of The Product Features
Blade Slider
Blade slide with full metal automatic return knife design, smooth sliding, back knife intelligent
12-Sided Blade
Tungsten steel 12-sided blade, broken core in one time, neat cut surface, long service life
Fiber Clamp
Suitable for single-core fiber, ftth drop cable, with scale, more user-friendly
Fiber Clamp
The clamp design can stabilize the fiber well without damaging the fiber, making the slit flatter.
