Description

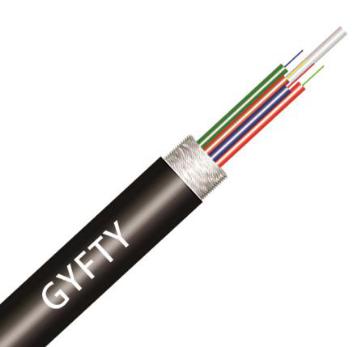

Non-metal Loose Tube Standed Optical Cable
Cable type：GYFTY

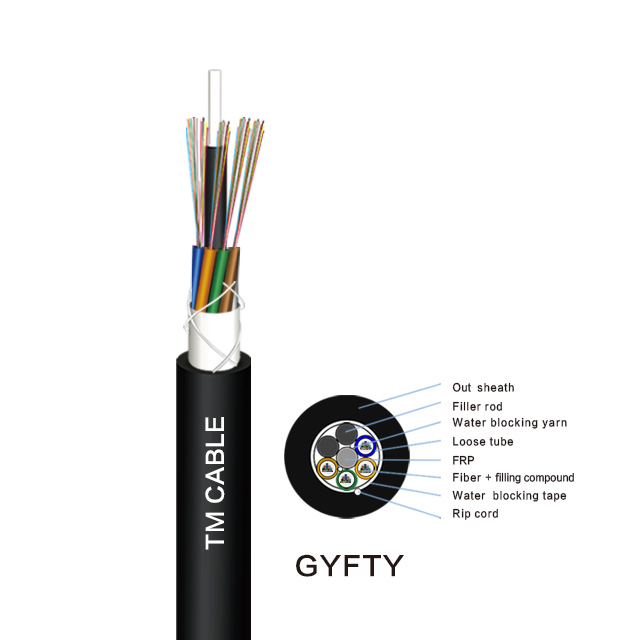

Structure diagram：
Optical Fiber Type：Optional single mode, multimode or single mode multimode combination.
Description：Non-metal strength member, optical fiber loose tube structure, SZ stranded, cable core filled with water blocking ointment, PE sheath.
Laying Method ：Piping installation or non self-supporting Aerial.
Application：Suitable for long distance communication and Inter office communication.
Temperature Range：-40℃ ~ +60℃
Characteristics：
1.Reasonable design and precise control of the fiber length in the loose tube, so that the cable has excellent mechanical properties and environmental performance.
2. The outer part of the reinforcement and the core of the cable are filled with water-blocking grease to ensure the moisture-proof and water-blocking effect of the cable.
3. The cable is excellent in flexibility and bending resistance.
4. The optical cable is all non-metallic structure, light in weight, easy to lay, and excellent in power plant resistance.
Technical Parameters：
|
Fiber Count
|
Cable Diameter (mm) |
Cable Weight (kg/km) |
Bending Radius
(mm) |
Tensile Strength
(N) |
Crush Resistance (N/100mm) |
|||
|
Static |
Dynamic |
Short Term |
Long Term |
Short Term |
Long Term |
|||
|
2-24 |
9.5 |
77 |
10D |
20D |
1500 |
600 |
1000 |
300 |
|
26-36 |
10.2 |
78 |
10D |
20D |
||||
|
37-72 |
10.5 |
94 |
10D |
20D |
||||
|
74-96 |
12.1 |
120 |
10D |
20D |
||||
|
98-108 |
12.8 |
134 |
10D |
20D |
||||
|
110-120 |
13.6 |
150 |
10D |
20D |
||||
|
122-132 |
14.3 |
166 |
10D |
20D |
||||
|
134-144 |
15.1 |
184 |
10D |
20D |
||||
