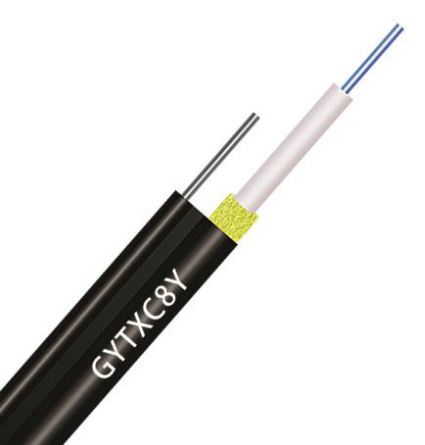

GYTXC8Y Optical Fiber Cable
Cable type：GYTXC8Y

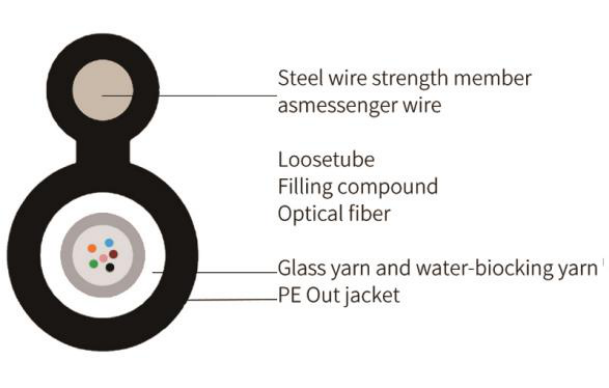

Structure diagram：
Optical Fiber Type：Optional single mode, multimode or single mode multimode combination.
Description：Central loose tube with jelly compound inside to protect the cladding fiber. Corrugated steel tape laminated with plastic at both sides bonding to PE sheath. The cross-section in figure 8 shape. Incorporates stranded steel messenger wire.
Laying Method：self-supporting Aerial
Application：:Suitable for long distance communication and Inter office communication.
Temperature Range：-20℃ ~ +70℃
Characteristics：
Messenger wire as self-supporting part, high tensile strength, easy for erection.
Technical Parameters：
|
Cable Diameter (mm) |
Cable Weight (kg/km) |
Bending Radius (mm) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
||||
|
Static 静态 |
Dynamic 动态 |
Short Term 短期 |
Long Term 长期 |
|||||
|
7.2±0.3mm x 17.8mm ± 0.3mm |
171 |
10H |
20H |
1200 |
400 |
1000 |
||
