Fiber Optic Mechanical Splicer Connector

Home Products Fast ConnectorFiber Optic Mechanical Splicer Connector

Fiber Optic Mechanical Splicer Connector

  • Category:Fast Connector
  • Inquiry Send Email

    Description

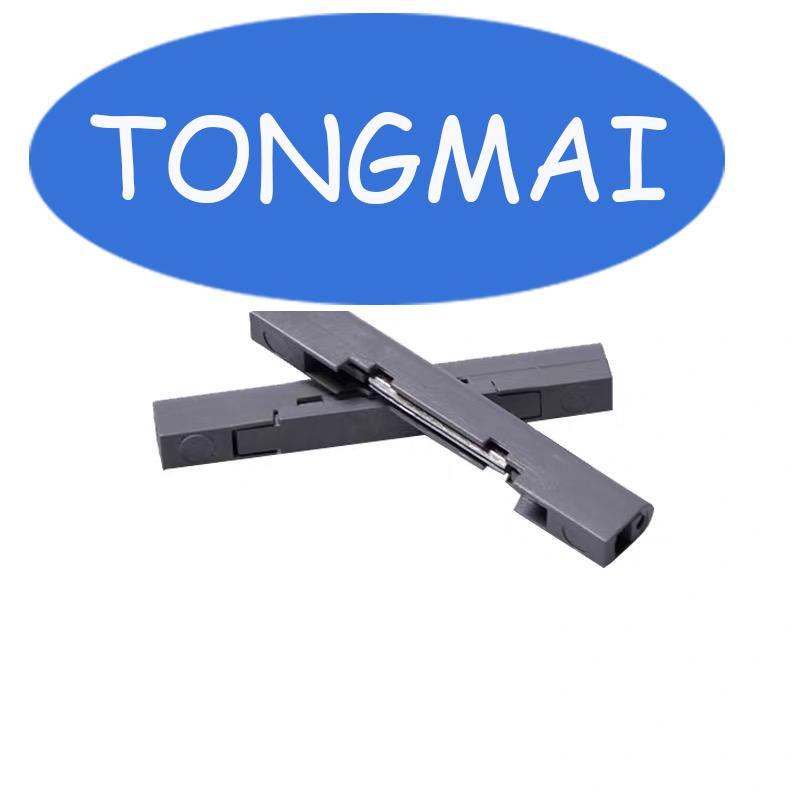

    Fiber Optic Mechanical Splicer Connector


    The Mechanical Splicer is used for fast splice and has very good performance. Mechanical splicer can realize mechanical splice, Compared with the traditional hot melt technology, the biggest advantage is no welding machines to be needed, the power supply and other hard conditions. Anyway it can simply realize splice by manual and make the construction convenient. It can greatly reduce the cost of welding at the same time.



    Applications:

    Fast Ethernet, LAN and WAN data communication

    High Speed company servers

    Multiplexer, switches and routers

    Optical and ATM access network equipment

    Optical transport and telecommunications, FTTH,FTTx

    Switching equipment



    Specifications:

    Mode

     SM

    Operation Time

    about 15s(exclude fiber presetting)

    Insertion Loss

    ≤ 0.3dB(1310nm & 1550nm)

    Return Loss

    ≤ -45dB

    Success Rate

    >98%

    Reusable Times

    >10 times

    Tighten Strength of Naked Fiber

    >5 N

    Tensile Strength

    >50 N

    Teperature

    -40~+85℃

    On-line Tensile Strength Test (20 N)

    IL ≤ 0.3dB

    Mechanical Durability(500 times)

    IL ≤ 0.3dB

    Drop Test(4m concrete floor, once each direction, three times total)

    IL ≤ 0.3dB
