Description

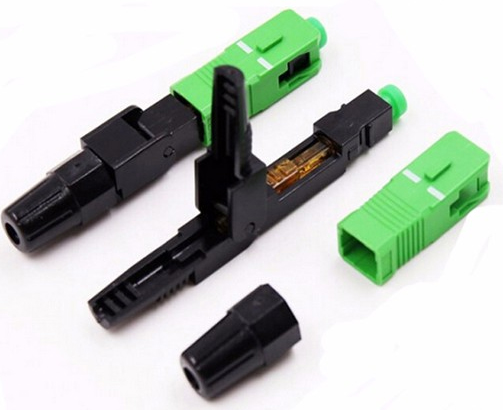

FTTH SC APC fiber optical fast connector
Field installable connectors can be assembled easily and quickly in the field with no epoxy, heat cure devices or special tooling to facilitate the termination of the fiber. To reduce material waste, the drop cable connector can be removed and reterminated using the same connector up to five times.
The fiber mating alignment and gripping technology includes a factory-polished zirconia ferrule, which improves durability and provides a reliable, low-loss fiber termination.
A tool kit can be ordered separately. It contains Tripping and cutting tool, cleaver, and a cleaning paper.
Key Features:
1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss.
Application :
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications
